Light Weight Fiberglass Aluminum Honeycomb Panels for Advertising
Billboard
Definition

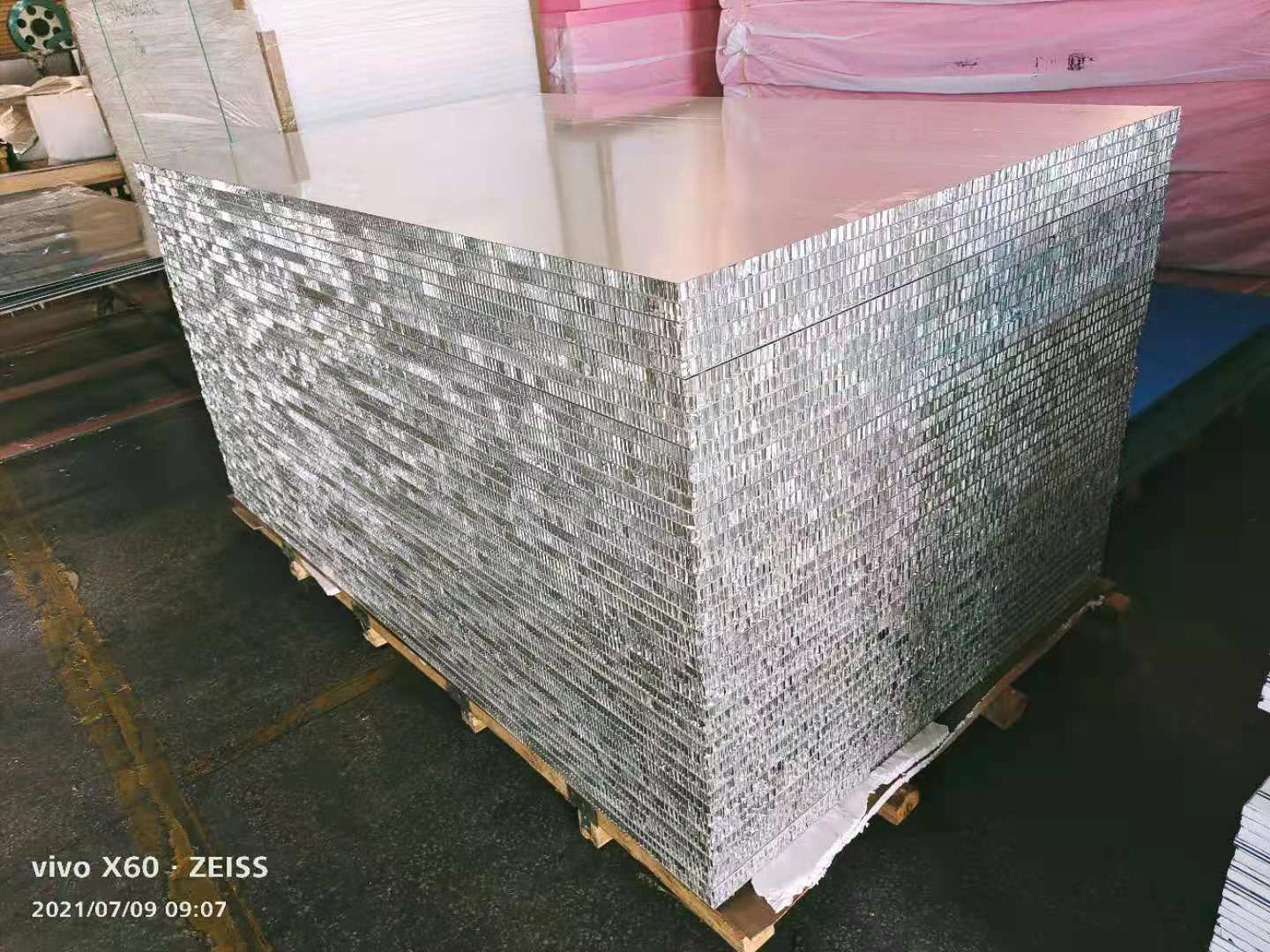

Aluminum honeycomb panel is compoisted byaluminum sheet+ aluminum
honeycomb core + aluminum honeycomb sheet
Aluminum honeycomb core is composed by muli-layer aluminum foil
material and is available in varies cell sizes with unique cell
configurations that significantly strengthen the panel without
deformation of the cell walls or loss of mechanical properties with
the relevant thickness.
The honeycomb core surface is treated for corrosion resistance for
durability purposes.
Composition
| Skins | handmade glassfiber fabric, made of epoxy resin or polyester resin,
thickness from 0.3mm to 3.0mm
|
| Cores | aluminum honeycomb cores, alloy 3003 series, cell size 1/4'',
3/8'', etc. foil thickness from 0.04mm to 0.08mm |
Total panel thickness | from 3mm to 100mm |
| Weight | 20mm thick panel 4.5kg per square meter(with 1.0mm fiberglass skins
and 1/4inch cell size.)
|
| Standard panel size | 1220x2440mm, 1500x3000mm, 1250x3000mm, any other customized sizes.
|
Advantages
• Reduced weight
• Mechanical strength and flexibility
• Acoustic and thermal insulation
• Water, moisture, corrosion and chemical resistance
Application
Back panel for stone aluminum honeycomb panels.
Wall Panel
Sign and Bill Boards
Frequently Asked Questions: Sandwich Panels
1.What Is A Sandwich Panel?
A sandwich panel is a composite panel that uses stiff and strong
skins (face sheets) bonded to a lightweight core. Common skin
materials are Aluminum and fiberglass. Common core materials are
plywood ,EPS foam,XPS Foam,PU foam , aluminum and PP honeycomb.
Sandwich panels are incredibly lightweight and strong.
2.What Are Sandwich Panels Used For?
Sandwich panels are used when a super lightweight assembly is
required. The interior structure (walls, floors, etc.) of airplanes
are usually constructed of sandwich panels instead of solid
materials. Satellites, trains and racecars also use sandwich panels
to reduce weight as much as possible while holding strong.
3.Can You Mount Things To A Sandwich Panel?
Since the skins on a sandwich panel are so thin extra precautions
must be taken when mounting things to them. Bonding a fastener to
the surface works in many cases. For through bolts it’s necessary
to use an insert or fill a section of core with adhesive to keep
the panel from crushing as the bolt is tightened.
Why choose WDF?
1:We produce honeycomb panel with more than 10 years experience.
We have professional team to offer clients total solution from
design to finish, provide customer individual care.
2.Overall control over the whole production process.
Excellent executive ability and good team work spirit.
3.Our team is dynamic, young, motivated, customer-oriented and
diverse and you can reach us at 24/7.
4.Our products are tested , so you can rest assured that our
quality is guaranteed
