Mould Proof Aluminium Honeycomb Panels Antibacterial For Kitchen Cabinet

Ask Lasest Price
Brand Name :	WDF
Model Number :	WDF-AHP
Certification :	ISO
Price :	USD 12.5-40 per sqm
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000 SQM per Month
Delivery Time :	5-15 working days after depoist,depending on qty

Add to Cart

Product Details
Company Profile

Mould Proof Aluminium Honeycomb Panels Antibacterial For Kitchen Cabinet

Fire Resistant Aluminum Honeycomb Panel For Kitchen Cabinet

WDF manufactures very high quality Aluminium Honeycomb Panels that are bonded with aluminum face material and with a core in

aluminum honeycomb. Our honeycomb panels are produced according to the needs of our clients, therefore dimensions and specifications

are determined by our customers.

In addition we offer custom manufacturing of Honeycomb Panels. Foshan WDF offers design, test and prototyping assistance to build you a composite sandwich structure.

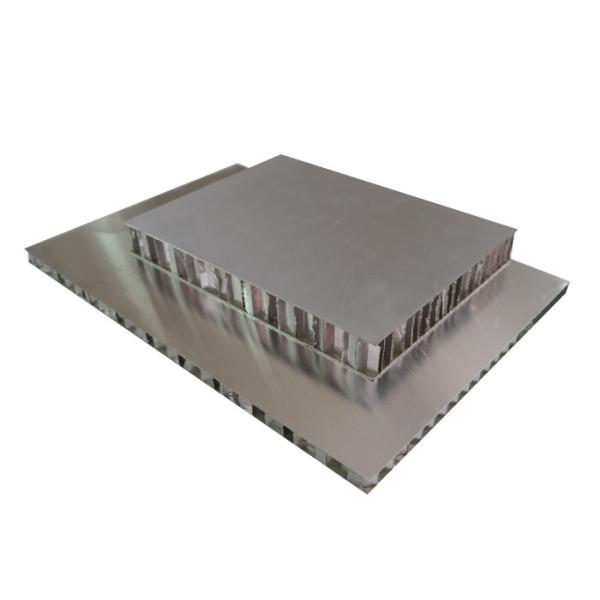

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin

Aluminum Honeycomb Core

At a Glance:

Material	Aluminum Alloy (3003/5052, etc.)
Regular Size (WLT)	1,2202,440/3,0006 mm
Max. Size(WLT)	2,00010,000200 mm
Regular Thickness	10/12/15/20/25 mm
Available Thickness	6-200 mm
Regular Surface Treatment	PVDF,PE,Powder Coating, Anodized, etc.
Perforation	Yes (customized)
Applications	Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc.
Customerization(MTM)	Yes (color, surface texture, size, shape, pattern, etc.)

Suggestion:
1. For interior wall (PE coating): range from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm)
2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: from 1.0mm to 1.5mm; bottom plate: from 0.7mm to 1.0mm)

Features:

- Light

- Good rigidity

- Flat and straight

- Good at wind-proof and pressing-proof

- Fire-proof

- Easy to process and shape

-Good at weather-proof

- Good intensity

- Good at sound and heat insulation

- Good at shock-resistance

- Green building material

- Energy-saving and environmental protection

Physical Property
Item	Unit	T=10mm
Weight	kg/m3	kg/m3
Thermal expansivety	23x10-6
Heat conduction ratio	/ºC	1.7
Cimbustion	W/MºC	Flame Resist / Class B1
Presssing-proof		1.72
Pulling-proof strong modulo of the surface	Mpa	20-50
Bending protracting ratio	Gpa	5%

Application

Aluminum honeycomb panel has widely used in facade cladding industry, interior decoration, ceiling, partition,

furniture industry, ship hull building and ship decoration, vehicle building and so on.
