Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel

    Buy cheap Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel from wholesalers

    Buy cheap Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel from wholesalers
    • Buy cheap Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel from wholesalers

    Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel

    Ask Lasest Price
    Brand Name : WDF
    Model Number : WDF-PAHP
    Certification : ISO
    Price : 25-35USD/SQM
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000 SQM per Month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

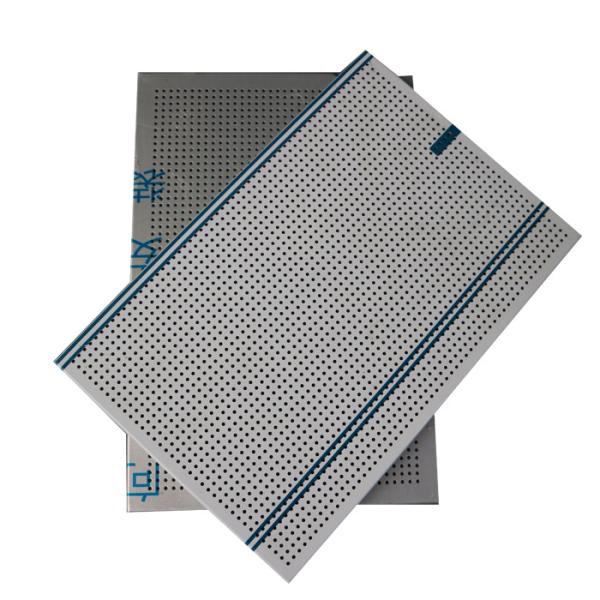

    Insulation Perforated Aluminum Ceiling Panels Noise Reduction Honeycomb Core Panel

    Light weight Perforated Ceiling Aluminum Honeycomb Panel Noise Reduction


    Introduction

    It is a kind of composite panel made from two aluminium alloy sheets as skins and aluminum honeycomb as the core.

    The honeycomb structure gives the panel better flatness and strength than traditional aluminium ceiling tiles, meanwhile,

    the honeycomb ceiling panel can be made in larger size and manufactured into curved or angled shapes.


    The perforation on top aluminum skin of the panels to give good sound insulation performance. And the non-woven fabric

    bewteen the perforated aluminum skin and the honeycomb core will prevent the glues come out from inside, so the perforated

    aluminum surface is clean with decorative beauty.


    Brief Introduction

    Overall Honeycomb Panel Thickness6mm,8mm,10mm,12mm,15mm,18mm,20mm, etc.
    Top aluminium skin0.5mm, 0.7mm, 0.8mm, 1.0mm. etc
    Core MaterialAluminum honeycomb core
    Perforationdiameter2.5mm, 3.0mm, etc.
    Surface finishroller coated, powder coated, spray painting, etc.
    Max. Size

    2000x10000mm


    Features

    Good acoustic property

    Easy installation

    Allow each panel to be moved and replaced independently

    Data

    Technical Data of Honeycomb Panels
    Thickness20mm25mm
    Facing Aluminum skin1.0mm1.0mm
    Backing Aluminum skin1.0mm1.0mm
    Weight (kg/m2)7.47.8
    Mechanics function of complex planking and surface planking
    Inertia Rectangle I(cm4/m)19.8531.67
    Measurement of cutting W(cm3/m)1924
    Hardness of complex planking E.I(KN Cm2/m)139000221700
    Changeable measurement(N/mm2)7000070000
    Tensile strength of surface planking (N/mm2)Rm≥220Rm≥220
    0.2%Power of bending (N/mm2)Rp0.2≥130Rp0.2≥130
    (EN485-2:1194) Extending rateA50≥8A50≥8
    Surface decoration layerPVDF
    Luminosity (original data)30-40%30-40%
    Hardness of pencilHB-FHB-F
    Honeycomb Specification
    Size of honeycomb1/4(6.3mm)1/4(6.3mm)
    Aluminum honeycomb density80kg/m380kg/m3
    Strength of pressure-resistant(MIL-STD-401)4N/mm24N/mm²
    Function of Acoustics
    Data of sound absorption0.050.05
    Indicator of sound seperating (ISO717-RW)2325
    Function of Heating
    Data of heating guiding(w/m2k)2.252.7
    Data of heating preventing R(1/m)(m2k/w)0.00890.0093
    Data of heating passing U(k)(w/m2k)5.595.575

    Application

    1.Building exterior and interior curtain wall.
    2.Decoration and renovation additions for old buildings
    3. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
    4.Shop door decoration .
    5.Advertisement board display platforms and signboards.
    6. Wallboards and ceilings for tunnels
