FRP Composite Truck Body

Ask Lasest Price
Brand Name :	WDF
Model Number :	WDF-TBK
Certification :	ISO
Price :	2000-10000USD Per Set based on Spec
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 Sets Per Month
Delivery Time :	15-25 working days

Add to Cart

Product Details
Company Profile

FRP Composite Truck Body

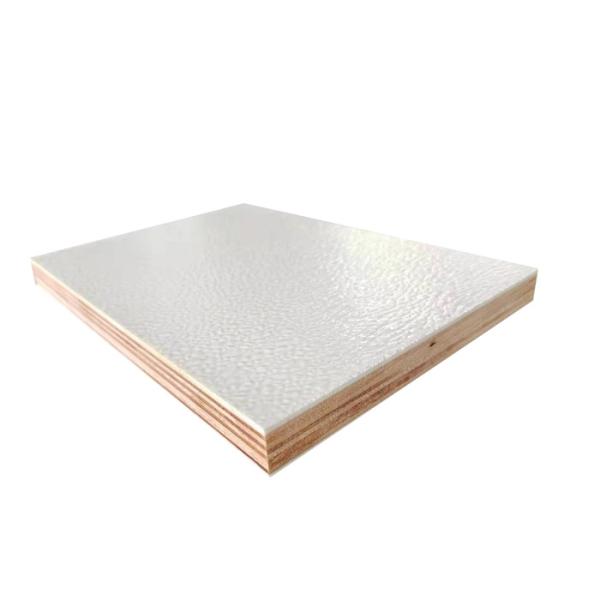

Fiberglass Reinforced Plywood (FRP) Composite Truck Body Panel For Dry FReight

FRP Plywood is made with Fiberglass refinfocerd laminates each side with plywood core inside.

“Fiberglass Reinforced Plywood” is as tough woven fiberglass-gelcoat exterior with ridged ½” plywood core. Engineered to increase cargo room width, while maintaining structural strength.

	Standard FRP or aluminum composite panels (10 - 150 mm thick) without cutting, padding or reinforcements. Corner profiles, adhesive and primer will be provided
	Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with reinforcements. Corner profiles, adhesive and primer will be provided
	Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with built-in doors, windows, hatches, reinforcements or an integrated frame in the floor panel. Corner
	Windows and doors are available upon request
Notes	Normally truck body are supplied in CKD format to save

Our Composite Truck Bodies are engineered and constructed with premium materials sourced. Each component

is carefully selected to guarantee a trouble free long life.We deliver flat packed per shipping container to your doorstep.

Description

Smooth exterior walls, increased interior width
Built for all trucks foreign or domestic
Standard Lengths 12’ to 28’ / custom bodies built as small or large as requested (within transportation guidelines)
Solid strip 11/8”hardwood floor standard (NO, plywood core veneers)
LED marker lights standard
Aluminum cast corner caps, durable diamond treadplate nose radius, and solid .125 aluminum front corner posts
One piece roof, aluminum or .075 ‘extended life’ translucent roof, anti-snag crowned roof bows
Interior lining; none required but fully customizable.
Rear frame available in painted galvaneal or stainless steel

Specifications

Product	Core (mm)	Inside Sheet (mm)	Outside Sheet (mm)	Total Thickness (mm)	Weight (Kg / Sqm)
Dry Goods	25	2.4	2.4	29.8	8.46
Dry Goods	35	2.4	2.4	39.8	8.86
Frozen Goods	45	2.4	2.4	49.8	9.26
Frozen Goods	75	2.4	2.4	79.8	10.46
Deep Frozen Goods	100	2.4	2.4	104.8	11.26

Application

Refrigerated Truck Bodies
Refrigerated Trailers
Cold Rooms

WDF Factory View

FRP Composite Truck Body
