Stiffness Dia 50mm Aluminum Honeycomb Core Making Sandwich Panels

Ask Lasest Price
Brand Name :	WDF
Model Number :	WDF-AHC
Certification :	ISO
Price :	10-30usd
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4000 Square Meter/Square Meters per Day aluminum honeycomb core
Delivery Time :	7-20 working days depending on qty

Add to Cart

Product Details
Company Profile

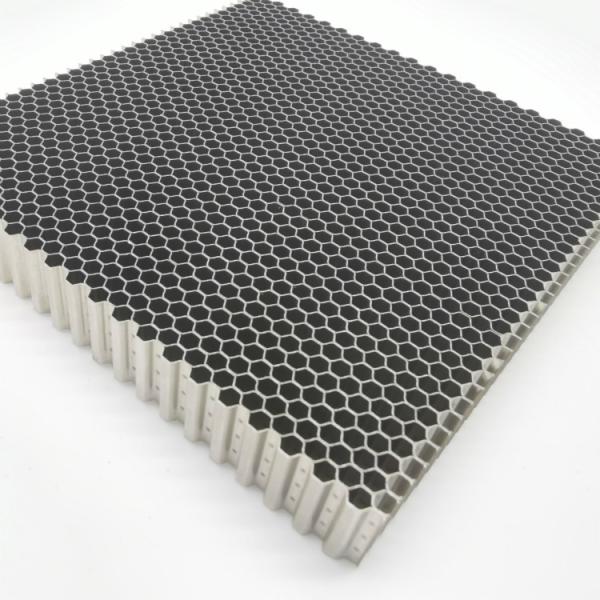

Stiffness Dia 50mm Aluminum Honeycomb Core Making Sandwich Panels

Aluminum Honeycomb Core For Producing Sandwich Composite Panel

How a Honeycomb Panel is made?

The honeycomb panel istypically made of 5 layers: decorative kin, adhesive, honeycomb core, adhesive and back skin. Materials with high tensile and compression strength are best suited to being skins,such as aluminum, galvanized steel, stainless steel, Titanium zinc alloy, copper, fiberglass etc.. Adhesive varies widely by application: high strength, high temperature, low temperature etc. Honeycomb Core: a variety of honeycomb cores are available per design requirements for materials and cell sizes.

Mechanical properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness

Supplied form:

Expanded or unexpanded.

Full blocks or cut slices.

Perforated or un perforated.

Corrosion treated or untreated.

Our aluminum honeycomb is adhesive-bonded of the aluminum foil, which produces one of the highest strength and the highest

surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.

Product Name	aluminum honeycomb core
Material type	A3003H18 / 5052H18
Cell side length (mm)	5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.5, 1.83, 2, 2.5, 3, 4, 5, 6, 7.5, 10, 12, 15 mm
Foil thickness	0.025-0.08 mm, 0.1mm
Height/Sheet Thickness	1.5mm to 500mm
Max Sheet Sizes	1700mm (L) x 8000mm (W)
Standard	CN, BS, ASTM
Capacity	50K m2/month

Applications:

Aluminum Honeycomb Core is widely used in electronic and industrial field which is including as below.

Architectural Building Cladding and decoration
Architectural Rainscreen Facades
Lightweight interior architectural panels
Tables and furnitures.
Aerospace, Marine & Transport Flooring, Walls & Partitions
Silk Screen Printing Tables
CNC Vacuum Bases
Lightweight Floors, Walls, Ceilings, etc
Special Purpose Panel Design

WDF Factory
